Pickle Load on Artifact Get

Following responsible disclosure practices, the vulnerabilities referenced in this blog were disclosed to ClearML before publishing. We would like to thank their team for their efforts in working with us to resolve the issues well within the 90-day window. This demonstrates that responsible disclosure allows for a good working relationship between security teams and product developers, improving the security posture throughout our community.

Collaborative Improvement – Machine Learning Operations (MLOps) Platforms

Organizations today use machine learning for an ever-increasing number of critical business functions. To build, deploy, and manage these models, data science teams have turned to Machine Learning Operations (MLOps) tooling, transforming what was once a lengthy process into an efficient and collaborative workflow.

New technologies – and the tools that support them – are often subject to less scrutiny than their more established counterparts. Ultimately, this results in security flaws and vulnerabilities going undiscovered until an adversary or security researcher digs deep enough to discover them.

In an effort to beat the adversary to the chase, one such MLOps tool – ClearML – caught our collective eye.

Basics of ClearML

ClearML is a highly scalable MLOps platform well known for its integration capabilities with popular machine learning frameworks and tools. It comprises several components, and our team researched three of these: the SDK or client (referred to in the documentation as the Python package), the API server, and the web server.

The server is the central hub for project management. Users interact with this via the SDK or web UI to manage their ML projects, datasets, and experiments to build and improve models. Experiments are run to test and evaluate the efficacy of models. Users can run experiments by assigning them to a queue to be picked up by an agent, essentially a worker node.

Let’s say a team of data scientists is developing a model for a specific task. The development process is tracked under a project in ClearML. Data scientists can build models and log them as part of the project, which can then be accessed, tested, evaluated, and improved on by any team member, allowing for version control and collaboration.

Over the last few months, the HiddenLayer SAI team has been researching ClearML and undergoing responsible disclosure with its creators and maintainers, Allrego.ai. During this process, our team found and disclosed six 0-day vulnerabilities across the open-source and enterprise versions of the ClearML client and server. Without further ado, let’s take a closer look at what we’ve uncovered.

The Vulns

• CVE-2024-24590: Pickle Load on Artifact Get
• CVE-2024-24591: Path Traversal on File Download
• CVE-2024-24592: Improper Auth Leading to Arbitrary Read-Write Access
• CVE-2024-24593: Cross-Site Request Forgery in ClearML Server
• CVE-2024-24594: Web Server Renders User HTML Leading to XSS
• CVE-2024-24595: Credentials Stored in Plaintext in MongoDB Instance

The ClearML Python Package

The ClearML Python package is used to interact with a ClearML Server instance via an API to perform management tasks, such as:

• logging and sharing of models,
• uploading and manipulating datasets,
• running and managing experiments and projects.

Storing models and related objects for later retrieval and usage is a crucial part of any workflow for model training, evaluation, and sharing because it enables a team of people to collaborate on developing and improving the efficacy of a model on an iterative basis. ClearML allows users to do this by leveraging Python’s built-in pickle module. Pickle is a Python module often used in the field of machine learning because it makes persistent storage of models and datasets a trivial task. Despite its popularity in the field, it is inherently insecure because it can execute arbitrary code when deserialized.

You can read more about how the SAI team at HiddenLayer was previously able to leverage the pickling and unpickling process to execute ransomware by loading a model and how we have seen pickles being deployed by malicious actors in the wild.

CVE-2024-24590: Pickle Load on Artifact Get

The first vulnerability that our team found within ClearML involves the inherent insecurity of pickle files. We discovered that an attacker could create a pickle file containing arbitrary code and upload it as an artifact to a project via the API. When a user calls the get method within the Artifact class to download and load a file into memory, the pickle file is deserialized on their system, running any arbitrary code it contains.

CVE-2024-24591: Path Traversal on File Download

Our second vulnerability is a directory traversal inside the Datasets class within the _download_external_files method. An attacker can upload or modify a dataset containing a link pointing to a file they want to drop and the path they want to write it to on the user’s system. When a user interacts with this dataset, it triggers the download, such as when using the Dataset.squash method. The uploaded file will be written to the user’s file system at the attacker-specified location. An important note is that the external link can point to a local file by using file://, the implication being that this introduces the potential for sensitive local files to be moved to externally accessible directories.

ClearML Server

The ClearML Server is a central hub for managing projects, datasets, tasks, and more. It consists of multiple components, including an API server that users can connect to via a client to perform tasks; a web server that users can connect to via a web UI to perform tasks; a fileserver where relevant files, such as artifacts and models, are stored by default; and a MongoDB instance, that stores authentication information, among other items.

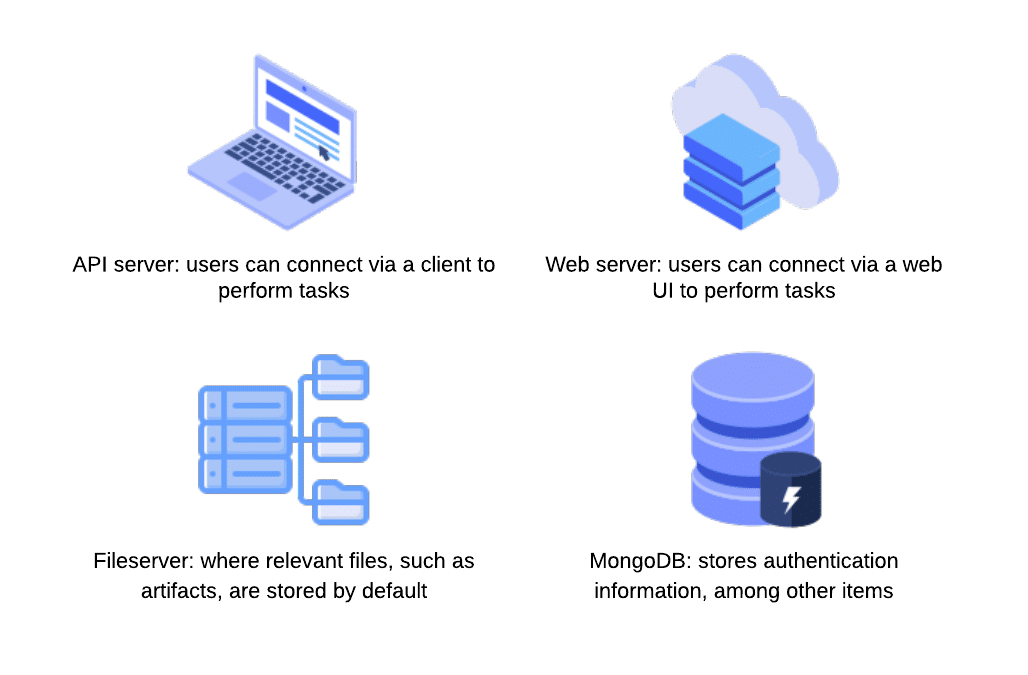

Figure 1: ClearML Server Components

CVE-2024-24592: Improper Auth Leading to Arbitrary Read-Write Access

Our third vulnerability is present in the fileserver component of the ClearML Server, which does not authenticate any requests to its endpoints, meaning an attacker can arbitrarily upload, delete, modify, or download files on the fileserver, even if the files belong to another user.

The ability to arbitrarily upload files means that the fileserver can be used to host any files, which could cause issues with space and storage but can also lead to more serious, potentially legal ramifications if the server is used to host malware or stolen or contraband data. To conduct an attack, an adversary only needs to know the address of the ClearML server, which can be obtained via a quick Shodan search (more on this later). Once they have a valid target, they can begin manipulating files on the fileserver, which, by default, is on port 8081, on the same IP address as the web server. It is important to note that when the contents of a file are modified directly in this manner, the web UI will not reflect these changes – the file size and checksum shown will remain the same. Therefore, an attacker could add malicious content to a previously verified file with no evidence of a change visible to regular users.

‍

CVE-2024-24593: Cross-Site Request Forgery in ClearML Server

The fourth vulnerability is a Cross-Site Request Forgery (CSRF) vulnerability affecting all API endpoints. During our research, we discovered that the ClearML server has no protections against CSRF, allowing an attacker to impersonate a user by creating a malicious web page that, when visited by the victim, will send a request from their browser. By exploiting this vulnerability, an attacker can fully compromise a user’s account, enabling them to change data and settings or add themselves to projects and workspaces.

CVE-2024-24594: Web Server Renders User HTML Leading to XSS

Our fifth vulnerability was a Cross-Site Scripting (XSS) vulnerability discovered in the web server component. Whenever users submit an artifact, they can also report samples, such as images, that are displayed under the debug samples tab. When submitting an image, a user can provide a URL rather than uploading an image. However, if the URL has the extension .html, the web server retrieves the HTML page, which is assumed to contain trusted data. The HTML is passed to the bypassSecurityTrustResourceUrl function, marking it as safe and rendering the code on the page, resulting in arbitrary JavaScript running in any user’s browser when they view the samples tab.
